Rubber Breaker_ Rubber crumb machine_ Rubber crushing machine_ Rubber pellet shredder_ Rubber pellet pre-crusher_ Breaker

    The rubber crusher is used in the primary processing of natural rubber to break and clean the mixed rubber and remove the sundries in the rubber. It is one of the main equipment for the production of no.20 standard rubber.         Rubber crusher is composed of body, knife shaft, moving knife, fixed knife, motor, reducer, hopper and so on.         Rubber pieces of rubber transmission is transition from motor to the shaft, then directly by the incoming transition shaft speed reducer drive the knife shaft rotation, on the knife shaft is equipped with the knife plate, and respectively before and after the body with a knife, when plastic piece from hopper loaded by the rotation of the knife dish will miscellaneous plastic piece broken, broken rubber after through the body of the inclined plate into the tank, so as to achieve the aim of crushing, washing.

[Use of rubber shredding machine]

      Rubber crumb machine, also known as rubber crumb machine, rubber breaker, rubber breaker, rubber pellet shredder, rubber pellet pre-crusher

[Use of rubber shredding machine]

      The rubber shredding machine is used in the initial processing of natural rubber to crush and clean the rubber to remove impurities in the rubber. It is an equipment for producing No. 20 standard rubber.

[Structure and working principle of rubber shredding machine]

      The rubber crumb crusher is composed of a machine body, a cutter shaft, a moving knife, a fixed knife, a motor, a reducer, a hopper, etc. The transmission of the rubber crumb machine is transmitted from the motor to the transition shaft, and then the transition shaft is transmitted to the reducer to directly drive the cutter shaft to rotate. The cutter shaft is equipped with a moving cutterhead, and fixed knives are installed at the front and rear of the machine body. After the blocks are loaded from the hopper, the rotating cutterhead breaks the miscellaneous rubber blocks into pieces. The broken rubber materials flow into the water tank through the inclined plate of the machine body to achieve the purpose of crushing and cleaning.

Rubber crushing machine model	SJ-50B
Shredded rubber motorized cutterhead diameter	ф500mm
Shredded rubber motorized cutterhead speed	40r/min
Rubber crusher reducer model	ZSY280-31.5-55II
Rubber crusher reducer transmission ratio	31.5
Rubber crusher motor model	Y250M-4
Rubber crusher motor power	55KW
Rubber shredding machine production capacity (dry glue)	2000kg/h

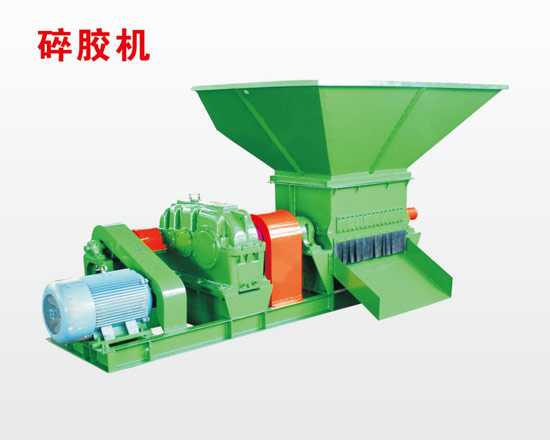

Pictures of rubber crushing machine
